11"x14" Compact Tig Welding Aluminum Composite Quick Reference Guide

TIG Welding Quick Reference Guide — 11" × 14" Aluminum Shop Sign

Stop digging through manuals or pulling out your phone every time you need a quick TIG welding reference.

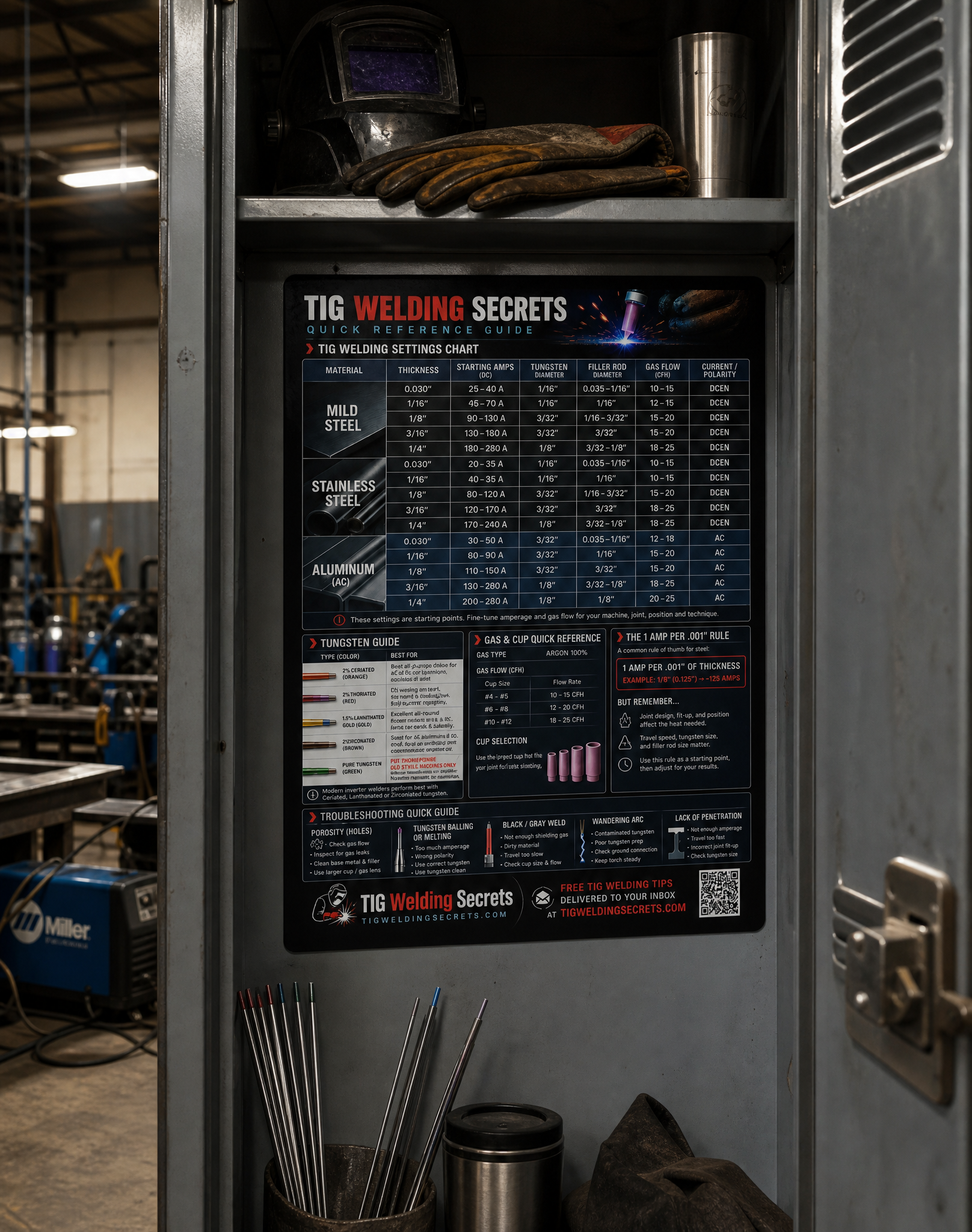

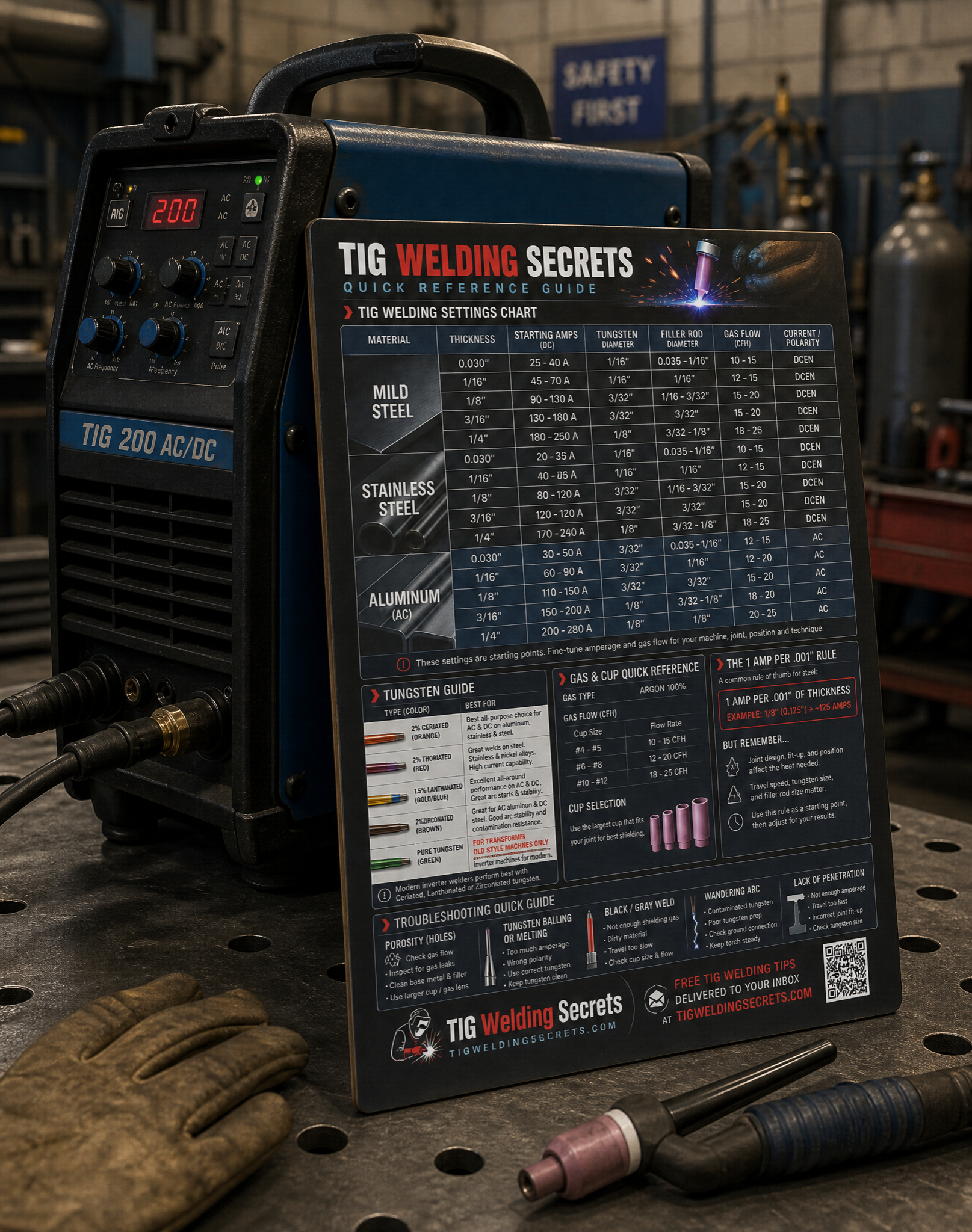

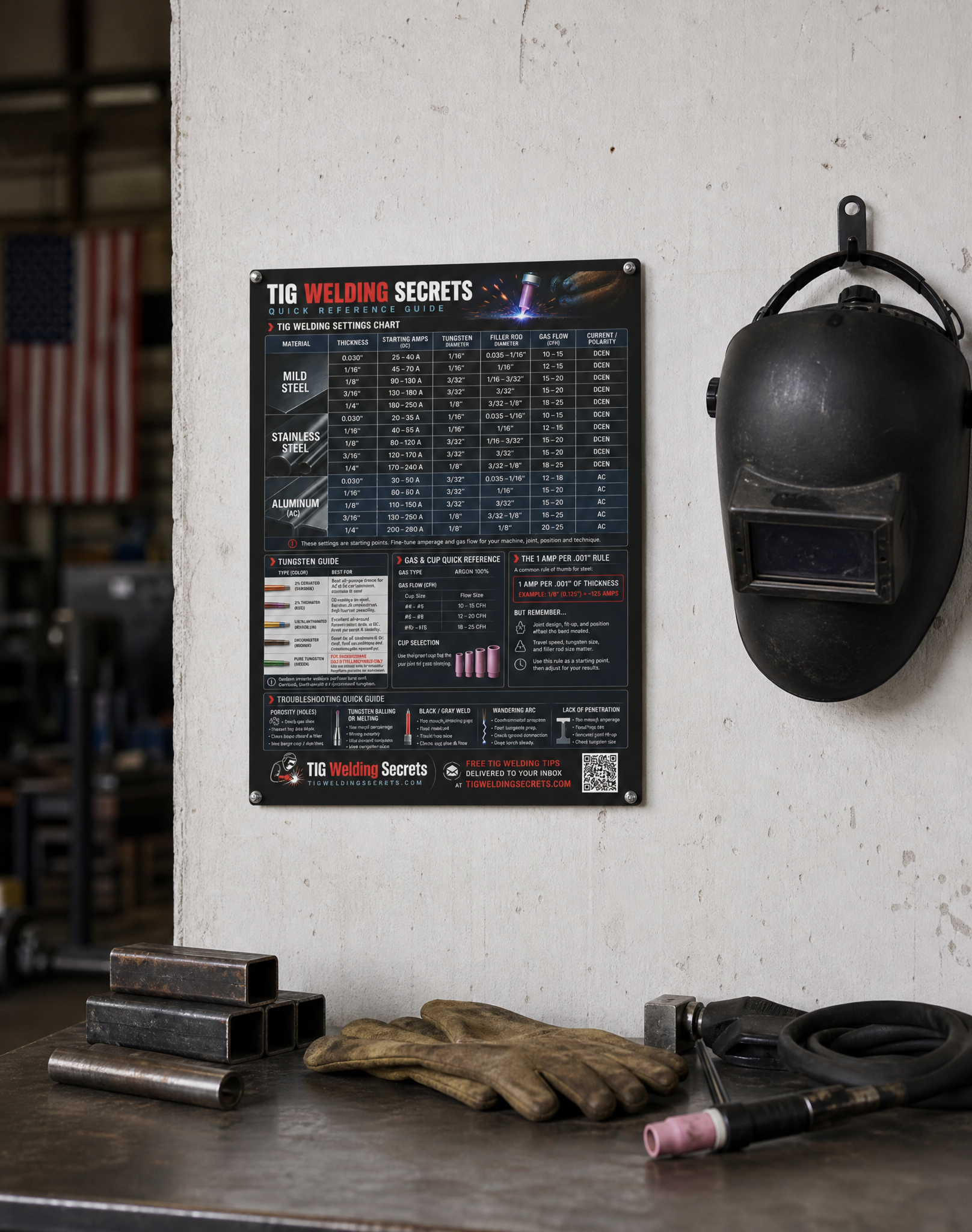

The TIG Welding Secrets Quick Reference Guide puts essential TIG welding information right on your shop wall in a durable 11" × 14" aluminum reference sign designed specifically for welders, fabricators, students, and serious garage shops.

Printed on 3 mm thick aluminum composite construction material, this isn't a flimsy paper chart or disposable poster. It's a substantial shop reference designed to look at home hanging above your welding table, fabrication bench, toolbox, or TIG machine.

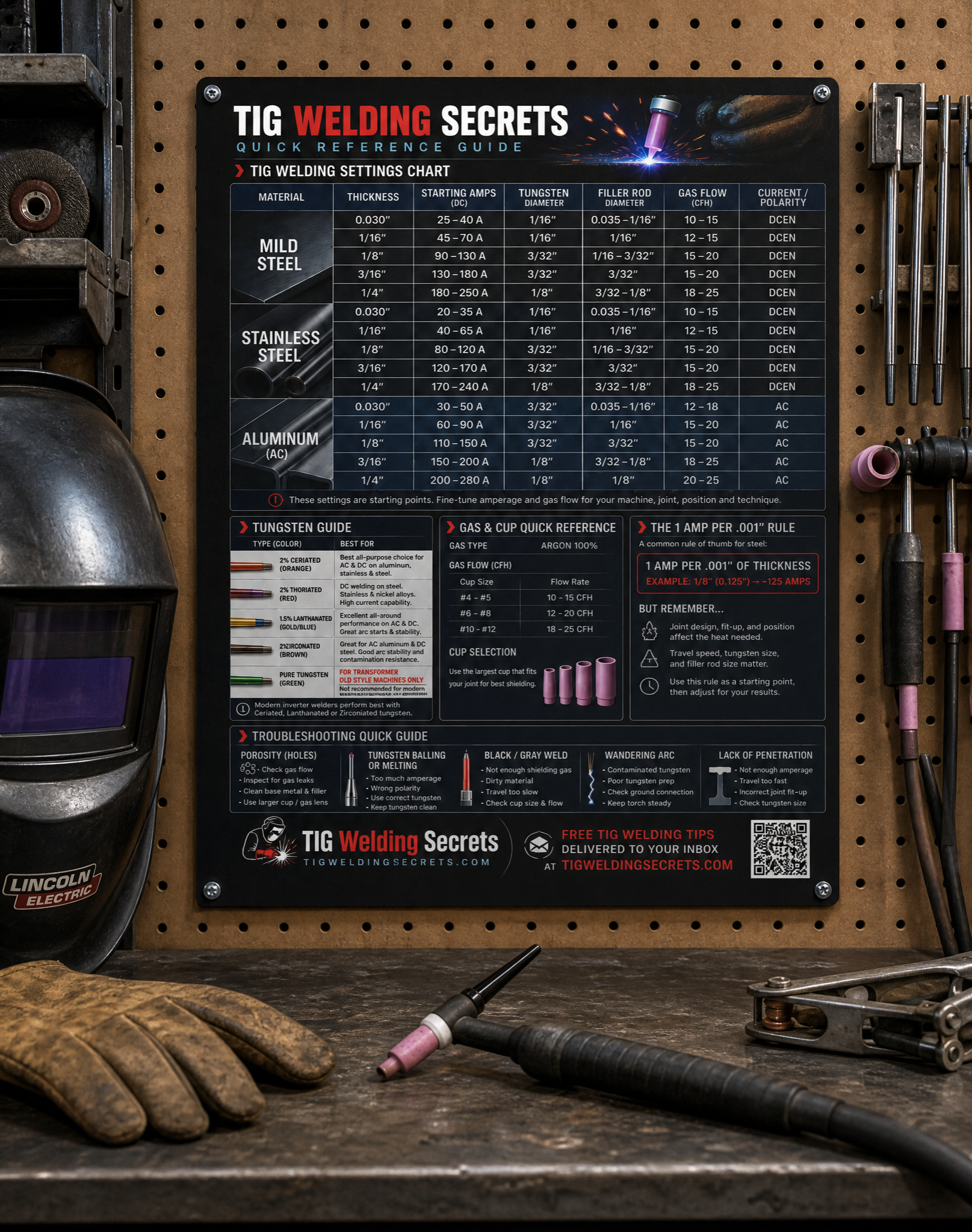

The chart packs a ton of useful information into one easy-to-reference layout, including:

• TIG settings for mild steel, stainless steel, and aluminum
• Recommended starting amperage ranges
• Tungsten diameter recommendations
• Filler rod diameter recommendations
• Argon flow (CFH) starting points
• AC/DC polarity reference
• Tungsten guide covering 2% Thoriated, Ceriated, Lanthanated, Zirconiated, and Pure Tungsten
• Modern inverter vs. transformer tungsten guidance
• Gas cup & flow quick reference
• The classic 1 amp per .001" steel rule of thumb
• Common TIG welding troubleshooting tips

The dark industrial design, TIG arc imagery, and TIG Welding Secrets branding make it as much a piece of welding-shop decor as it is a practical reference.

Size: 11" × 14"
Material: 3 mm aluminum
Designed for: Welding shops, fabrication areas, garages, trade schools, welding booths and home shops

Whether you're learning TIG or you've been burning tungsten for years, it's the kind of reference that's handy to have right there on the wall when you need it.

Welding parameters shown are intended as general starting points and should be adjusted for your machine, material, joint configuration, position, shielding setup and technique.
