16"x20" Metal TIG Welding Quick Reference Guide Shop Sign
Printed on demand and shipped by our fulfilment partner. Ships in 3–7 business days.

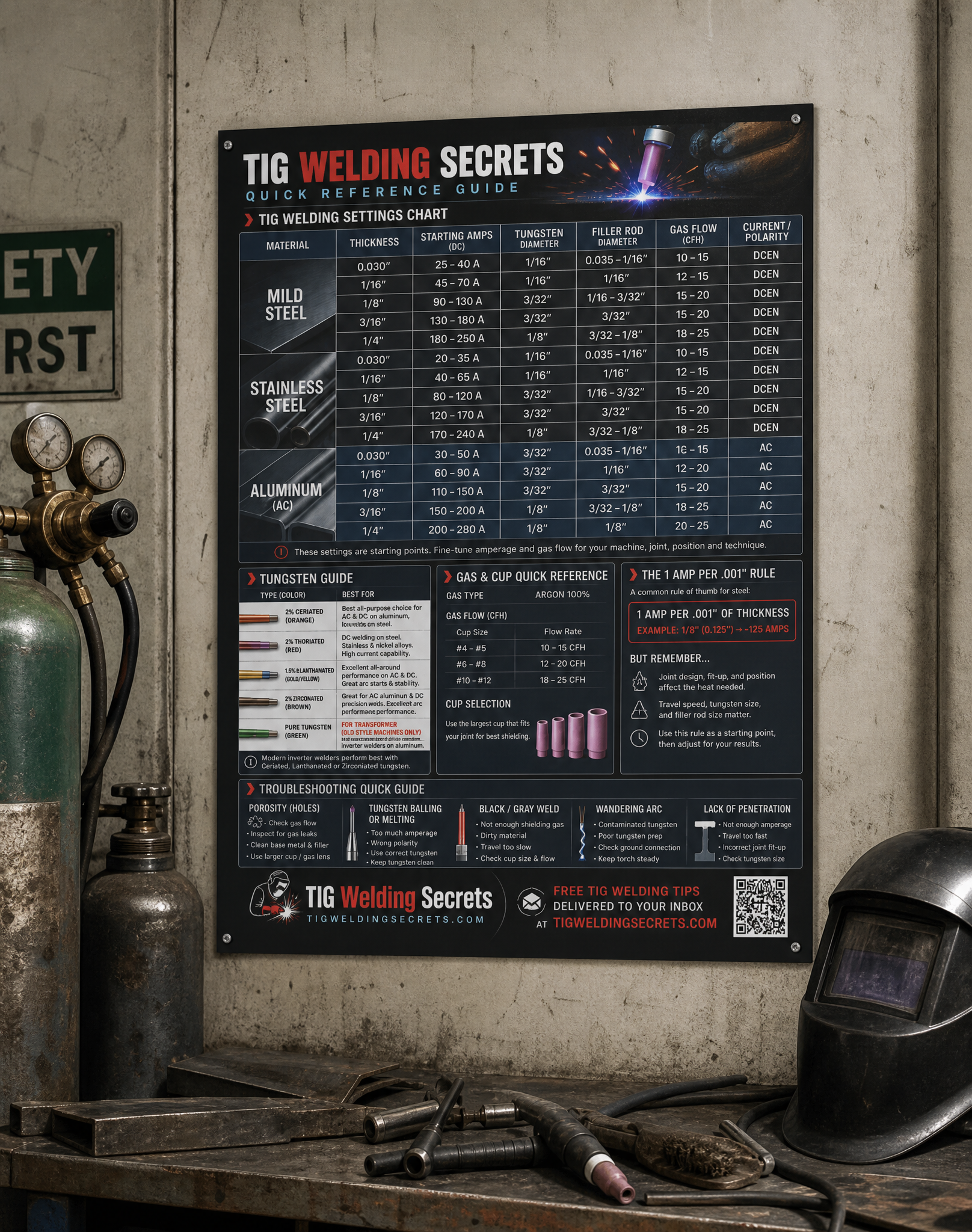

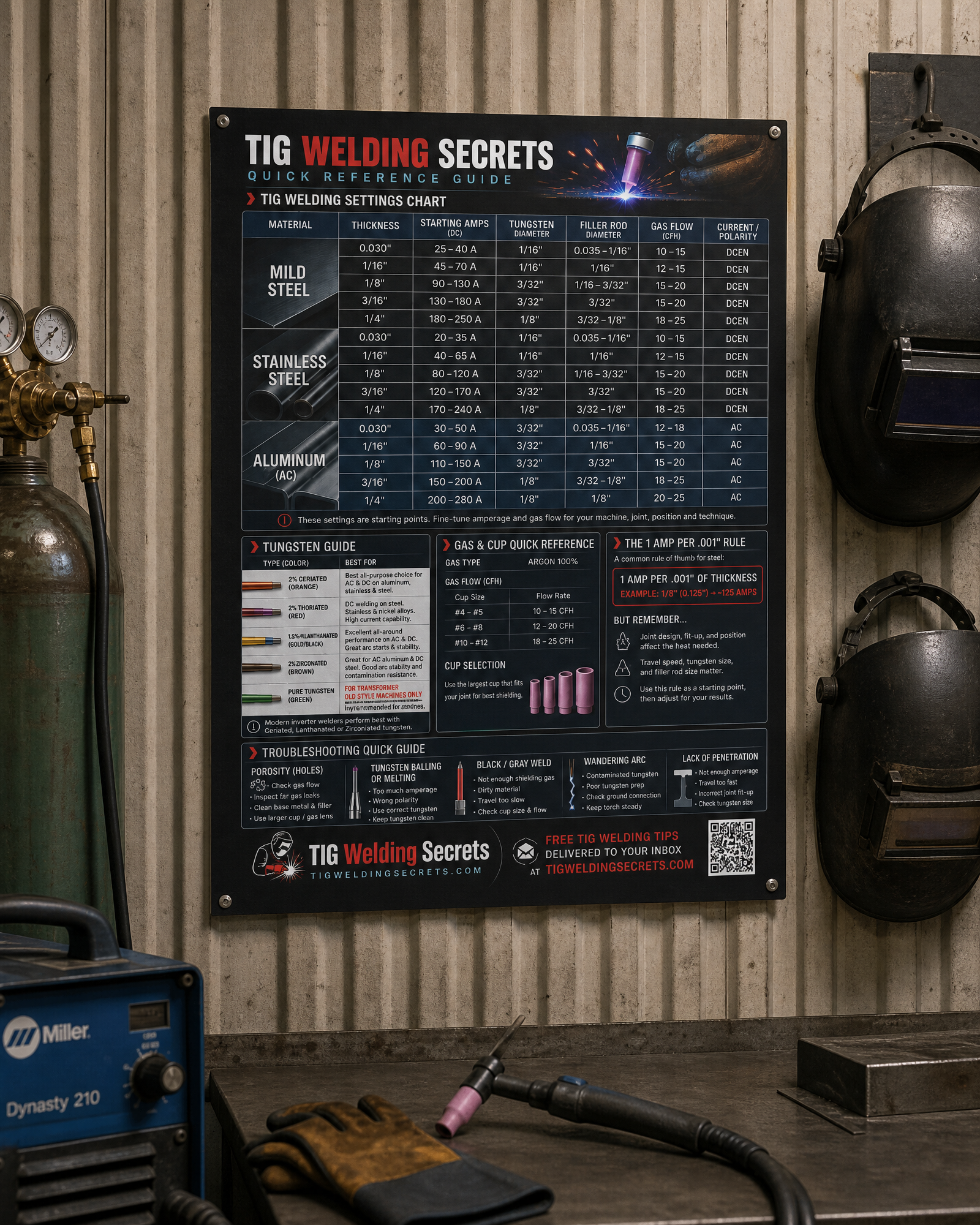

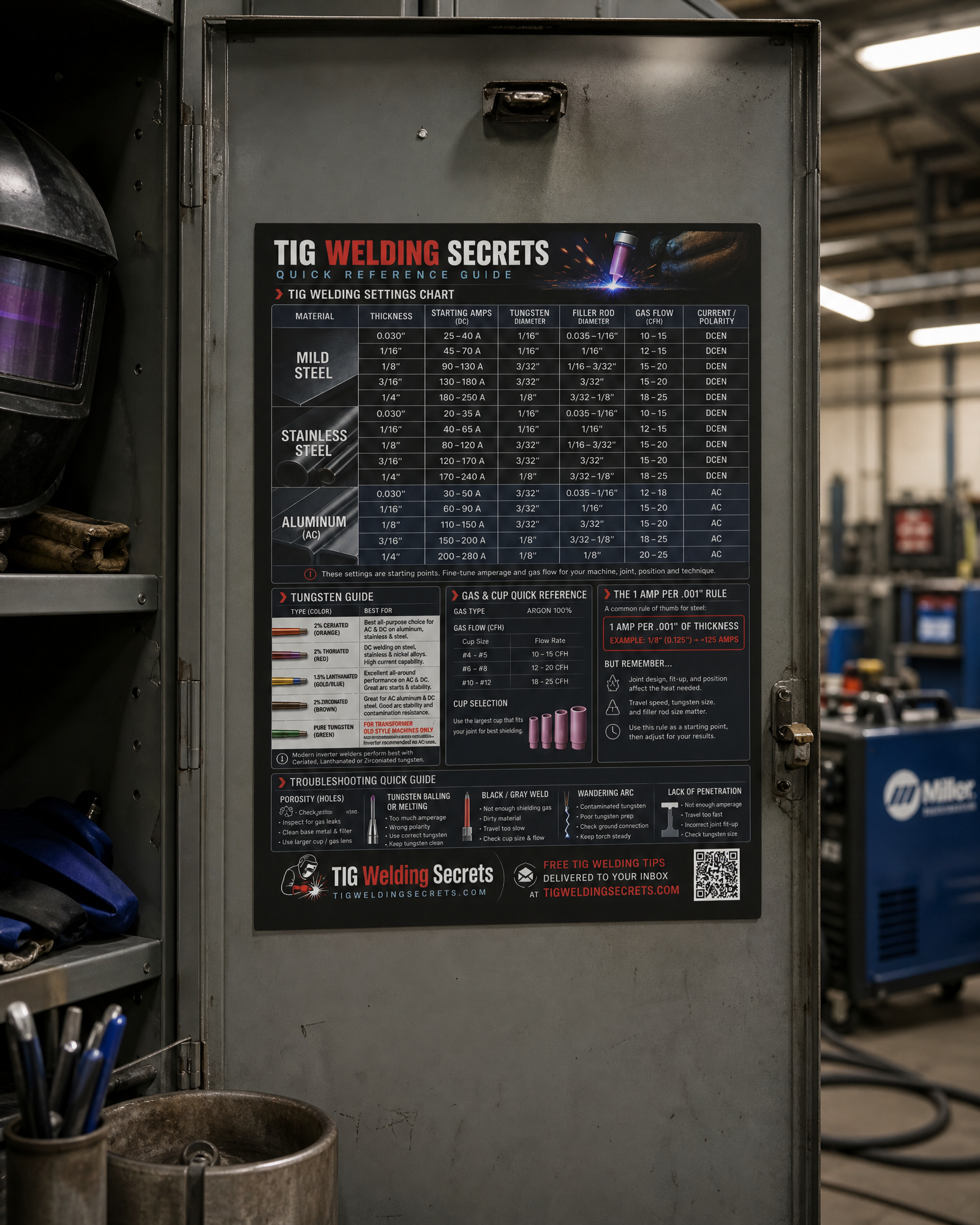

TIG Welding Quick Reference Guide — 16" × 20" Aluminum Shop Sign
Put the information you actually use where you can actually see it.
The TIG Welding Secrets Quick Reference Guide is a professional 16" × 20" shop reference packed with essential TIG welding settings, setup information, and troubleshooting guidance—all printed on substantial 3 mm thick aluminum and designed to live right on your shop wall.
No digging through manuals. No grabbing your phone with dirty gloves. No trying to remember whether you ran a 3/32" or 1/8" tungsten the last time you welded that thickness.
Just look up.
Designed for TIG welders, fabricators, students, instructors, and serious home shops, the chart includes quick-reference information for mild steel, stainless steel, and aluminum, including:
- Starting amperage ranges by material thickness
- Recommended tungsten diameters
- Recommended filler rod diameters
- Argon flow recommendations
- AC/DC polarity reference
- 2% Thoriated, Ceriated, Lanthanated, Zirconiated & Pure Tungsten guide
- Modern inverter vs. transformer tungsten recommendations
- Gas cup sizing and flow reference
- The classic 1 amp per .001" steel rule of thumb
- Common TIG problems and troubleshooting tips
BUILT FOR THE SHOP
At 16" × 20", the guide is large enough to serve as an easy-to-reference wall chart while remaining compact enough to hang above your TIG machine, welding table, toolbox, fabrication bench, or work area.
And unlike a paper poster, this version is produced on 3 mm aluminum for a rigid, substantial feel appropriate for an actual working shop.
Welding parameters shown are intended as general starting points and should be adjusted for your machine, material, joint configuration, position, shielding setup and technique.
